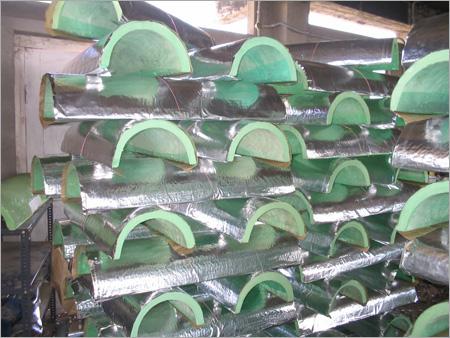

Phenolic Foams Pipe Section

Phenolic Foams Pipe Section
Phenolic Foams Pipe Section
Send Inquiry
Product Code : VND - 15
Brand Name : VND CELL PLAST
Price And Quantity
  • Minimum Order Quantity
  • as per requirement
  • Unit of Measure
  • Square Meter/Square Meters
  • Price
  • 300-1500rs INR
Product Description

Keeping track with market demands, our firm is affianced to manufacture, export and supply a qualitative range of Phenolic Foam Pipe Section. The provided foam is well-suited for covering the pipes of heating and cooling machinery to assure energy efficiency. It is manufactured under the stern guidance of our adept professionals by utilizing optimal quality phenolic polymers and advanced techniques in strict compliance with international standards. Additionally, we are offering this Phenolic Foam Pipe Section to the clients in various sizes and designs at affordable prices.

Features:

  • Rigid design
  • Excellent finish
  • Impact and heat resistance
  • Easy installation

Products Specifications:

  • Size : Nominal Bore 0.25 inch to  20 inch
  • Thickness : 25, 30, 40, 50, 60, 75 and 100mm
  • Facings Bare, Aluminum foil and Gloss Cloth

Technical Details:

Products Name

Phenolic Foams Pipe Section

Type:

New

Filling:

Foam

Shape:

Any

General Use:

Well-Suited For Covering The Pipes Of Heating And Cooling Machinery To Assure Energy Efficiency

Size

Nominal Bore 0.25 inch to 20 inch, 25, 30, 40, 50, 60, 75 and 100mm Thickness

Origin

India

PHYSICAL PROPERTIES :

Colour

Green or any other specified colour

Density

30 to 45 kgs/m3 or any specified density

MECHANICAL PROPERTIES :

Compressive Strength

120 to 190 KN/m2

Tensile Strength

220 to 250 KN/m2

Cross Breaking Strength

220 to 250 KN/ m2

Shear Strength

100 to 140 KN/m2

THERMAL PROPERTIES : ( BS:4370)

Thermal Conductivity

0.018 to 0.022 W/mtr.degK

Temperature Limits

-180 deg C to 120 deg C

Dimensional Stability

< 2% (BS: 3927)

MOISTURE PROPERTIES

Water Vapour Transmission

< 2 perm inch

Water Propagation ( ISO:2896)

< 5% W/V

FIRE PROPERTIES :

Ignitability, BS:476 part – 5

Class – P

Fire Propagation, BS:476 part – 6

S < 12

Surface Spread of Flame, BS:476 part-7

Class I

Building Regulations

Class 0

Critical Oxygen Index

45

Smoke Index

<5

Punking Behaviour

Non – Punking

Toxicity Index

<5

Closed Cell Content

90 % plus.
